Trash Rack Cleaning Machine Installation

Supply, delivery and installation, by the MSI-MUHR Joint Venture, of a Muhr trash rack cleaning machine with boom hoist at the Kali Gandaki 'A' Hydropower Station, Syangja district, Nepal.

ClientKali Gandaki A (KGA) Hydropower Plant
LocationSyangja district, Nepal
CompletedDec 2017

Project Overview

Overview

The MSI-MUHR Joint Venture installed a new automated Muhr trash rack cleaning machine (TRCM) with boom hoist at the 144 MW Kali Gandaki 'A' Hydropower Station in Syangja district, Nepal, for client Kali Gandaki A (KGA) Hydropower Plant, under reference MSI-PRJ-73-403. The station runs 3 units of 48 MW each. The project addressed excessive debris accumulation during seasonal changes such as autumn leaf fall and winter ice coverage, which had been hampering the existing raking machine. Mahavir Shree International carried out most of the work under MUHR's guidance, and MUHR commissioned the machine in December 2017.

Scope & Deliverables

  • New TRCM able to rake each 4.85 m slot in one pass
  • Supply of intake under-sluice stop log, trash removal system, spare parts, and special tools
  • Automatic cleaning algorithm controlled by water level sensors for removal of deposited foreign bodies from the protective racks
  • Installation designed for easy operation and maintenance, reducing modifications to the plant without endangering persons or equipment

Outcome

The Muhr TRCM was installed and commissioned at the Kali Gandaki 'A' Hydropower Station, providing automated, water-level-triggered raking of the trash racks.

Project Highlights

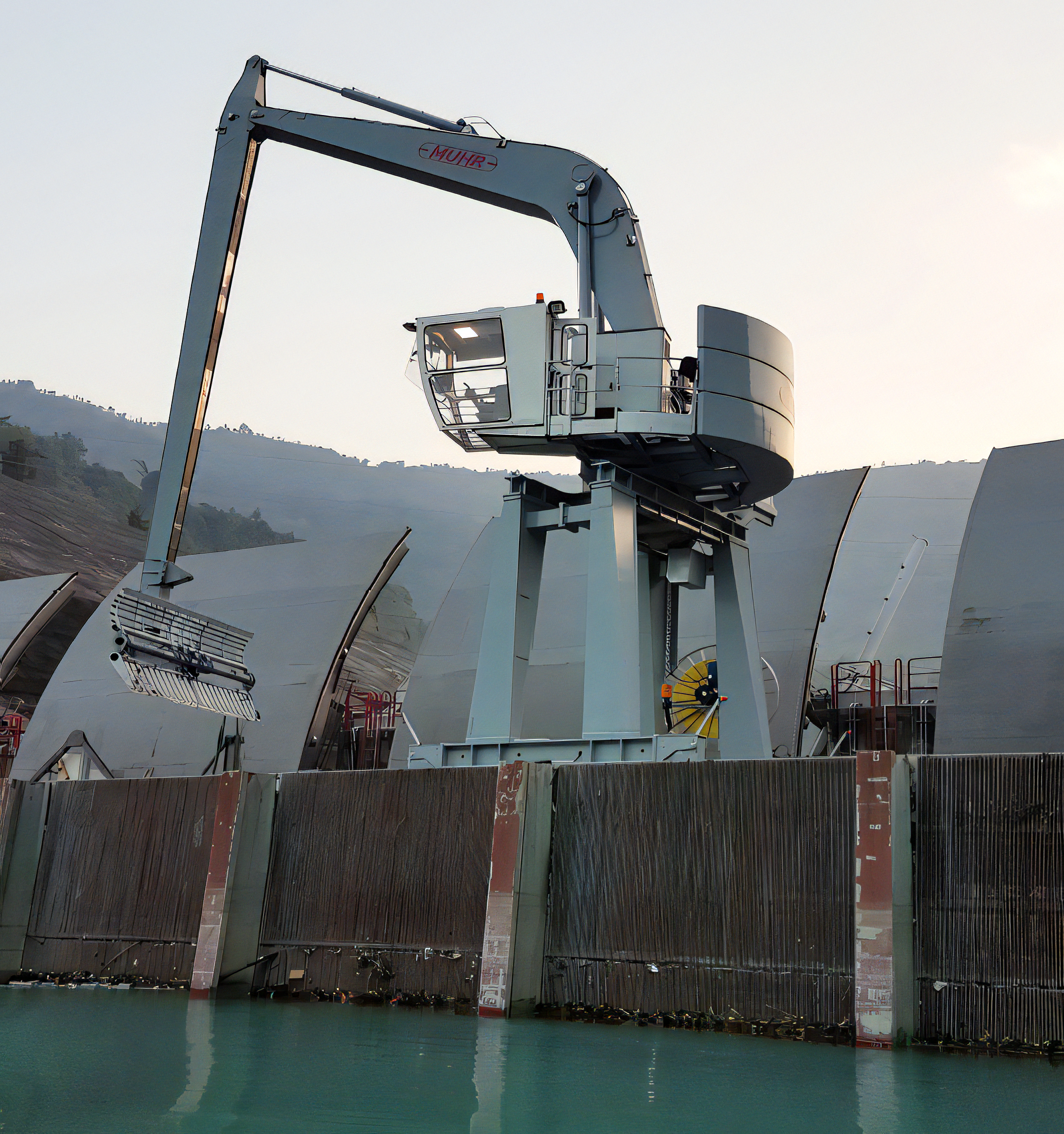

Trash rack cleaning machine at the Kali Gandaki 'A' intake

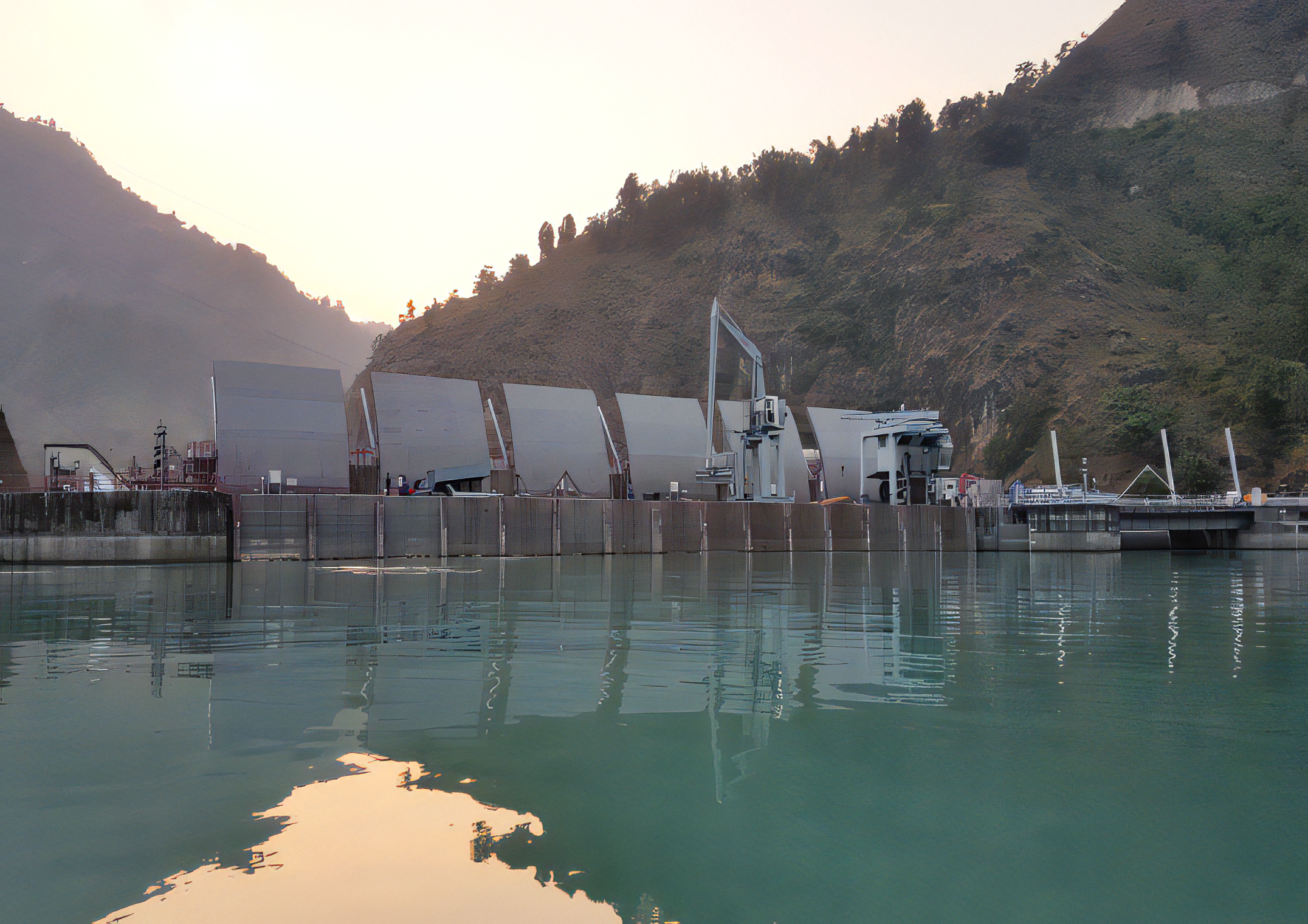

Kali Gandaki 'A' dam and intake reflected in the reservoir

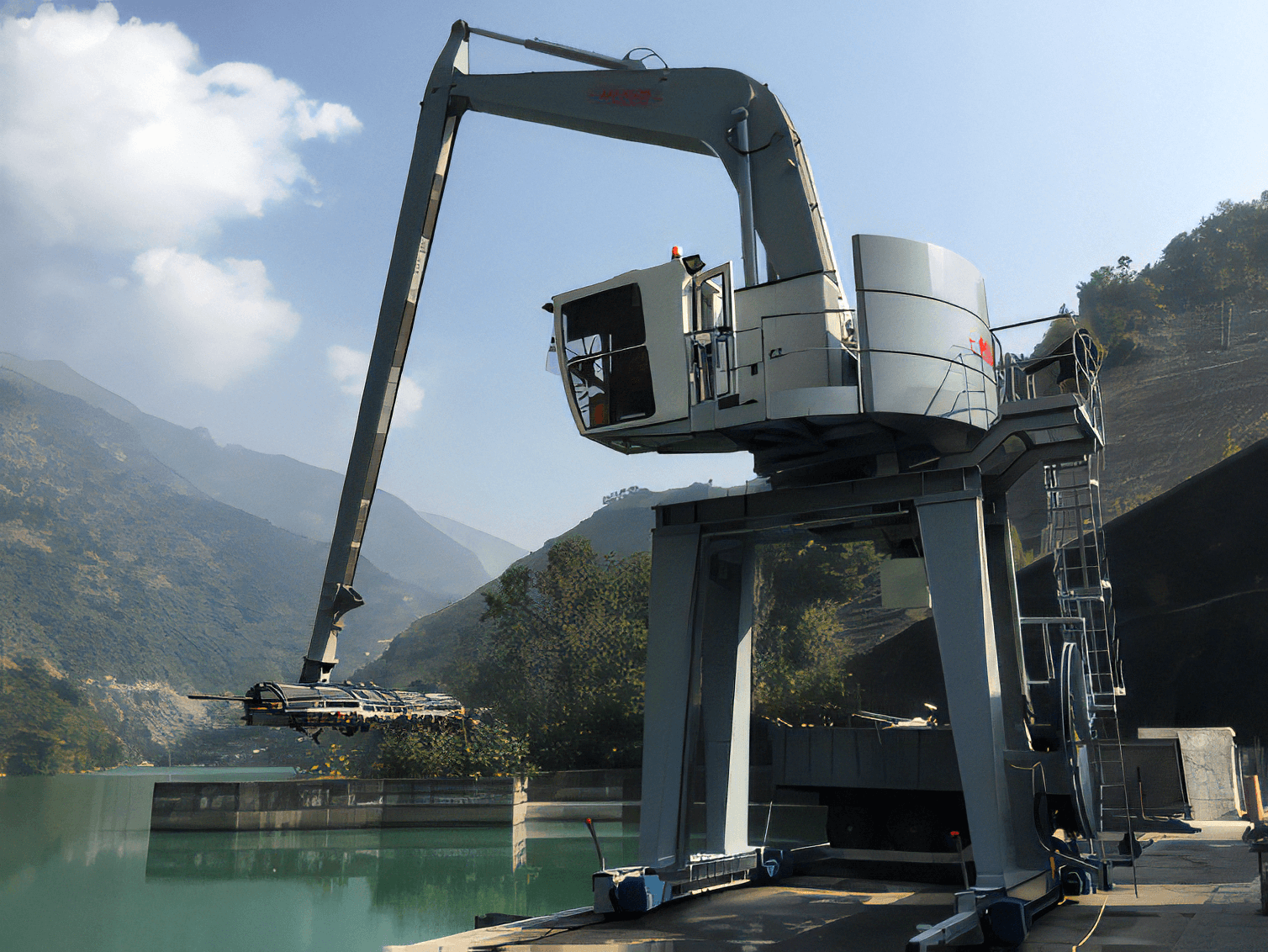

Trash rack cleaning machine on the intake deck at Kali Gandaki 'A'

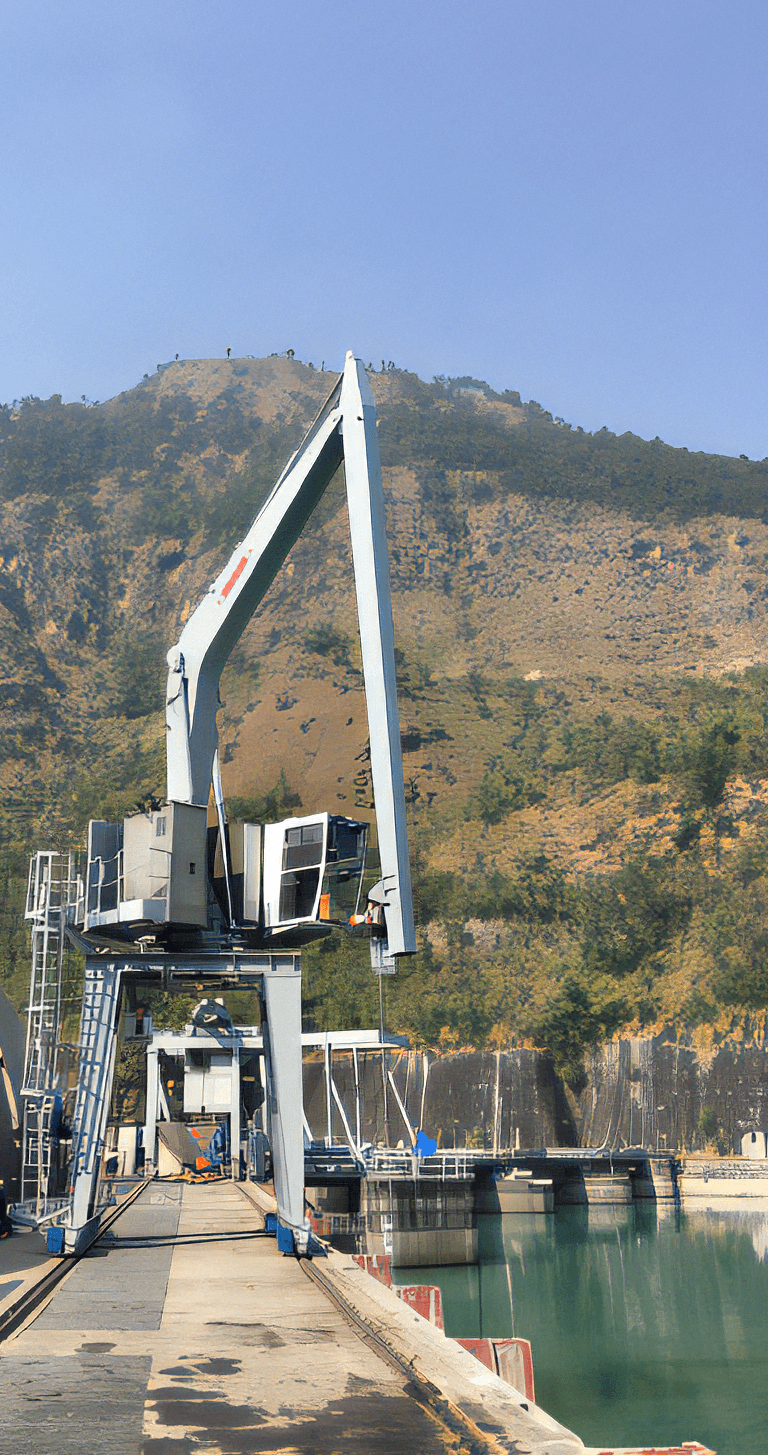

Trash rack cleaning machine boom at the Kali Gandaki 'A' intake
